详细参数
| 参数名称 | 参数值 |
| Source Content uid | NCV1117DT50RKG |
| Brand Name | ON Semiconductor |
| 是否无铅 | 不含铅 |
| 生命周期 | Active |
| Objectid | 2042932768 |

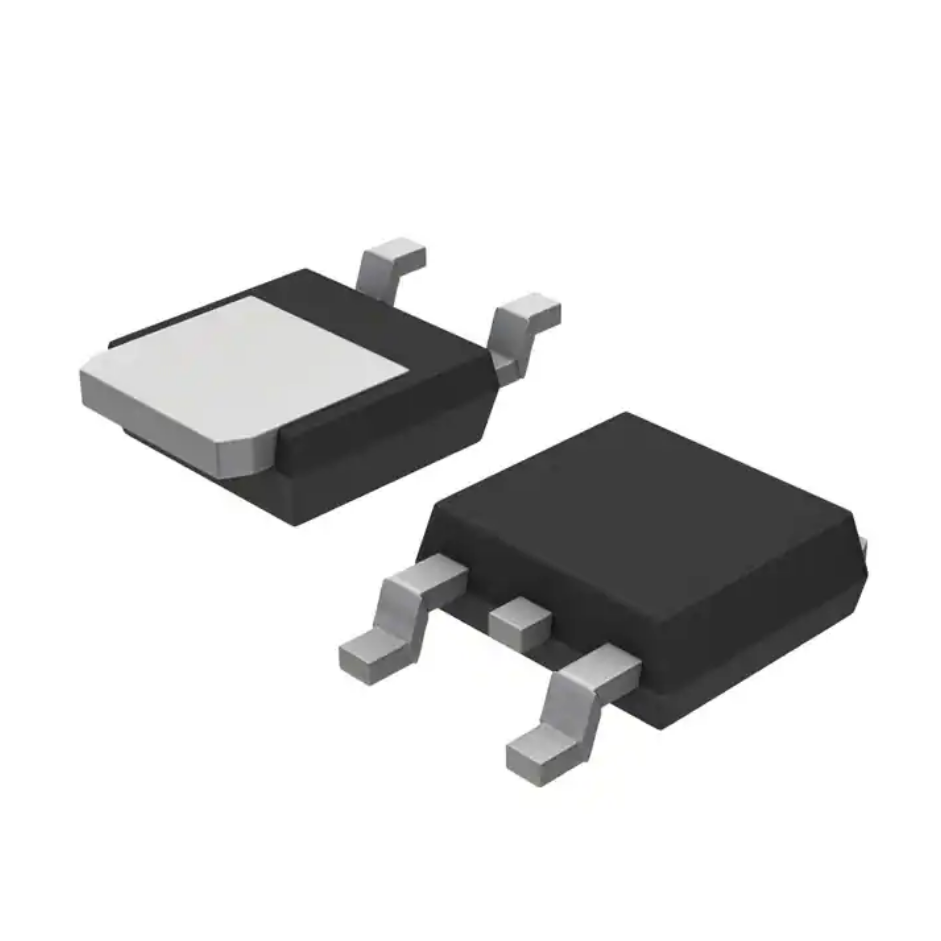

| 零件包装代码 | TO-252 |
| 包装说明 | TO-252, SMSIP3H,.38,90TB |
| 针数 | 3 |
| 制造商包装代码 | 369C |
| Reach Compliance Code | not_compliant |
| Country Of Origin | Malaysia |
| ECCN代码 | EAR99 |
| HTS代码 | 8542.39.00.01 |
| Factory Lead Time | 4 weeks |
| 风险等级 | 1.44 |
| Samacsys Description | ON Semiconductor NCV1117DT50RKG, LDO Voltage Regulator, 2200mA, 5 V ±1%, Maximum of 20 Vin, 3-Pin DPAK |
| Samacsys Manufacturer | onsemi |
| Samacsys Modified On | 2020-06-15 07:24:43 |
| YTEOL | 6.4 |
| 可调性 | FIXED |
| 最大回动电压 1 | 1.2 V |
| 标称回动电压 1 | 1.07 V |
| 最大绝对输入电压 | 20 V |
| 最大输入电压 | 15 V |
| 最小输入电压 | 6.5 V |
| JESD-30 代码 | R-PSSO-G2 |
| JESD-609代码 | e3 |
| 长度 | 6.54 mm |
| 最大电网调整率 | 0.006% |
| 最大负载调整率 | 0.015% |
| 湿度敏感等级 | 1 |
| 功能数量 | 1 |
| 输出次数 | 1 |
| 端子数量 | 2 |
| 工作温度TJ-Max | 150 °C |
| 工作温度TJ-Min | -55 °C |
| 最高工作温度 | 125 °C |
| 最低工作温度 | -40 °C |
| 最大输出电流 1 | 1 A |
| 最大输出电压 1 | 5.1 V |
| 最小输出电压 1 | 4.9 V |
| 标称输出电压 1 | 5 V |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | TO-252 |
| 封装等效代码 | SMSIP3H,.38,90TB |
| 封装形状 | RECTANGULAR |
| 封装形式 | SMALL OUTLINE |
| 包装方法 | TR |
| 峰值回流温度（摄氏度） | 260 |
| 认证状态 | Not Qualified |
| 调节器类型 | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| 筛选级别 | AEC-Q100 |
| 座面最大高度 | 2.38 mm |
| 子类别 | Other Regulators |
| 表面贴装 | YES |
| 技术 | BIPOLAR |
| 端子面层 | MATTE TIN |
| 端子形式 | GULL WING |
| 端子节距 | 2.29 mm |
| 端子位置 | SINGLE |
| 处于峰值回流温度下的最长时间 | 30 |
| 最大电压容差 | 2% |
| 宽度 | 6.095 mm |
