详细参数
| 参数名称 | 参数值 |
| Source Content uid | TPS70345MPWPREP |
| Brand Name | Texas Instruments |
| 是否无铅 | 不含铅 |
| 是否Rohs认证 | 符合 |
| 生命周期 | Active |
| Objectid | 2146632910 |

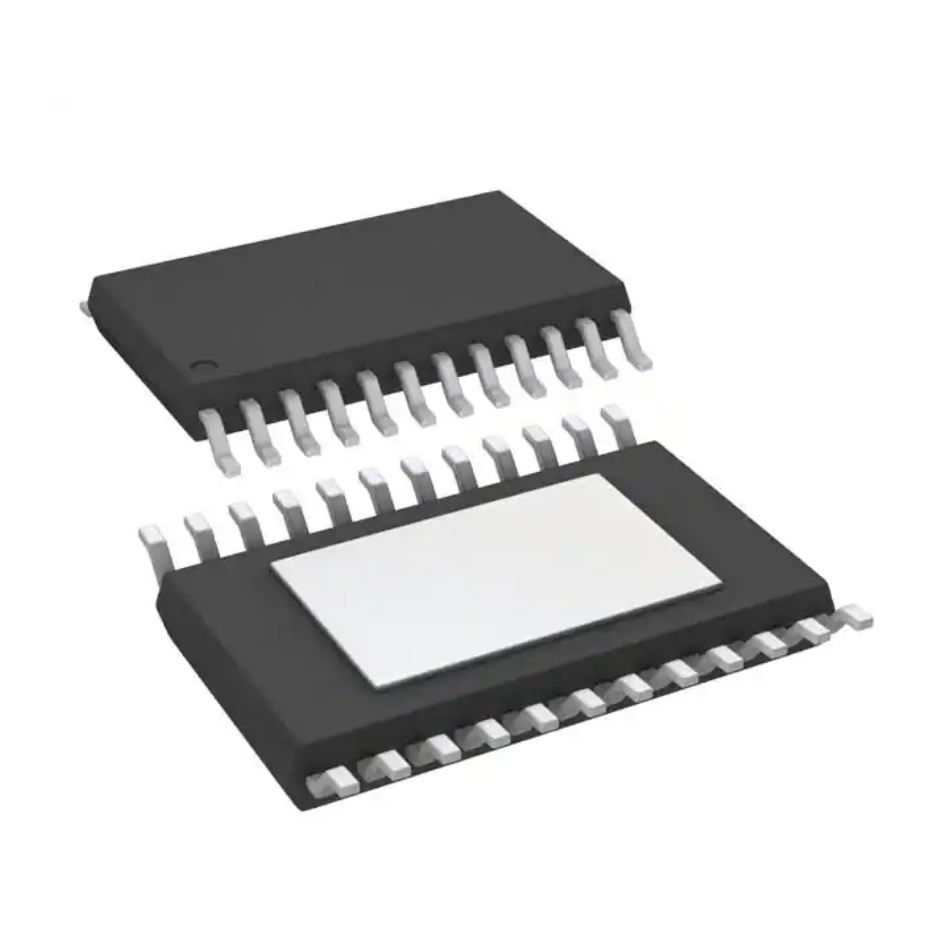

| 零件包装代码 | TSSOP |
| 包装说明 | HTSSOP, TSSOP20,.25 |
| 针数 | 24 |
| Reach Compliance Code | compliant |
| Country Of Origin | Taiwan |
| ECCN代码 | EAR99 |
| HTS代码 | 8542.39.00.01 |
| 风险等级 | 1.51 |
| Samacsys Description | Enhanced Product Dual-Output Low-Dropout Voltage Regulators W/Power Up Sequencing |
| Samacsys Manufacturer | Texas Instruments |
| Samacsys Modified On | 2021-08-25 06:26:24 |
| YTEOL | 15 |
| 可调性 | FIXED |
| 最大回动电压 1 | 0.255 V |
| 标称回动电压 1 | 0.16 V |
| 最大绝对输入电压 | 7 V |
| 最大输入电压 | 6 V |
| 最小输入电压 | 2.7 V |
| JESD-30 代码 | R-PDSO-G24 |
| JESD-609代码 | e4 |
| 长度 | 7.8 mm |
| 最大电网调整率 | 0.0056% |
| 湿度敏感等级 | 2 |
| 功能数量 | 1 |
| 输出次数 | 2 |
| 端子数量 | 24 |
| 工作温度TJ-Max | 125 °C |
| 工作温度TJ-Min | -55 °C |
| 最大输出电流 1 | 1 A |
| 最大输出电流 2 | 2 A |
| 最大输出电压 1 | 3.3 V |
| 最小输出电压 1 | 3.3 V |
| 标称输出电压 1 | 3.3 V |
| 最大输出电压 2 | 1.224 V |
| 最小输出电压 2 | 1.176 V |
| 标称输出电压 2 | 1.2 V |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | HTSSOP |
| 封装等效代码 | TSSOP20,.25 |
| 封装形状 | RECTANGULAR |
| 封装形式 | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH |
| 包装方法 | TR |
| 峰值回流温度（摄氏度） | 260 |
| 认证状态 | Not Qualified |
| 调节器类型 | FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR |
| 座面最大高度 | 1.2 mm |
| 子类别 | Other Regulators |
| 表面贴装 | YES |
| 技术 | PMOS |
| 端子面层 | NICKEL PALLADIUM GOLD |
| 端子形式 | GULL WING |
| 端子节距 | 0.65 mm |
| 端子位置 | DUAL |
| 处于峰值回流温度下的最长时间 | 30 |
| 最大电压容差 | 2% |
| 宽度 | 4.4 mm |
